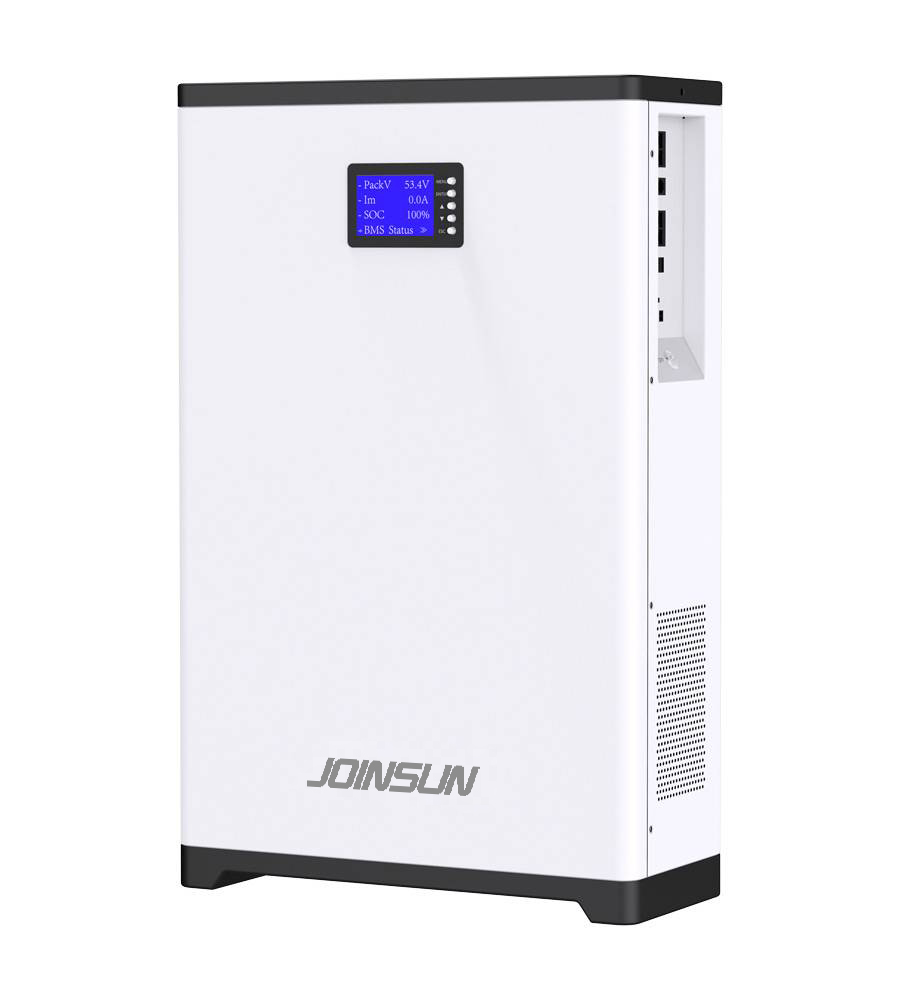

PW51200-H 51.2V 48V 200Ah 10kWh PowerWall Home-ESS Lithium Battery

• Cell: LiFePO4
• MOQ: 5
• Delivery: 25 Days
• Customizable / OEM / ODM: Yes
• Factory: JOINSUN, Guangdong, China
• Delivery Terms: FOB, EXW, CIF
• Payment: T/T, L/C, PayPal
• Sea / Air / Land Shipment: 10FT, 20FT, 40FT, 60FT

Efficient Power Solutions to Meet Your Needs

JOINSUN offers reliable power equipment to help optimize energy usage and reduce costs. Whether for industrial or commercial projects, we provide customized solutions based on your specific requirements. Contact us today to learn more and get a quote.

Quickly get a quote!

Description

PW51200-HSpecifications
Cell TypeLiFePO4
Nominal Voltage51.2V
Battery Capacity200Ah
Nominal Energy10.24kWh
Dimension [L x W x H]860 x 520 x 165 mm
Weight113kg
Working Voltage44.8V~57.6V
Charge Voltage57.6V
Discharge Cut-off Voltage44.8V
Rated Charging/Discharge Current50A Continuous
Maximum Charge Current100A Continuous
Maximum Discharge Current100A Continuous
Rated Charging/Discharge Power5120W
Charging Temperature0~55°C
Discharging Temperature-20~60°C
LCD ScreenYes
CoolingNatural
Max. Parallel Connection4p to 40.96kWh
Cycle Life (25°C / 77℉@60% DOD)>8000 Cycles
Cycle Life (25°C / 77℉@80% DOD)>6000 Cycles
Self-Discharge Rate<3% per month
IP GradeIP20
Battery CaseMetal
Monitoring & ProtectionSmart BMS: Overcharge / OverDischarge / Overcurrent / OverTemperature / ShortCircuit
CommunicationRS485 / RS232 / CAN-bus
Optional FunctionsBluetooth / WiFi / 4G / 5G / Circuit Breaker / Heating / Active Balance / LED Touch Screen / APP
AccessoriesInverter Power Cable, Parallel Cable, Communication Cable, Grounding Wire
Compatible InvertersVictron / GOODWE / Solis / Growatt / SMA / SAJ / Luxpower / SRNE / Deye / Voltronic, etc.
ColorWhite
Design Life20 Years
Warranty10 Years
User ManualWith the Battery Packaging
Certification & Safety StandardUN38.3 / IEC62619 / RoHS / EMC / MSDS
