PR-LV5150-3U Server Rack Battery 48V 51.2V 50Ah 2.5kWh

• Cell: LiFePO4
• MOQ: 50
• Delivery: 20 Days
• Customizable / OEM / ODM: Yes
• Factory: JOINSUN, Guangdong, China
• Delivery Terms: FOB, EXW, CIF
• Payment: T/T, L/C, PayPal
• Sea / Air / Land Shipment: 10FT, 20FT, 40FT, 60FT

Efficient Power Solutions to Meet Your Needs

JOINSUN offers reliable power equipment to help optimize energy usage and reduce costs. Whether for industrial or commercial projects, we provide customized solutions based on your specific requirements. Contact us today to learn more and get a quote.

Quickly get a quote!

Description

The PR-LV5150-3U Server Rack Battery is a high-performance lithium iron phosphate (LiFePO4) energy storage solution, ideal for OEMODM, and wholesale buyers seeking reliable power for industrial applications.

Key Features

  • High Capacity: 51.2V nominal voltage with a 50Ah capacity, offering 2.56kWh of energy.
  • Long Cycle Life: Over 8000 cycles at 60% depth of discharge (DOD), ensuring longevity and cost-effectiveness.
  • Advanced BMSSmart Battery Management System protects against overcharge, over-discharge, and short circuits.
  • Versatile Compatibility: Works seamlessly with various inverters like VictronGOODWE, and SMA.
  • Customizable Options: Available for OEM/ODM requests with flexible delivery terms.

Product Description

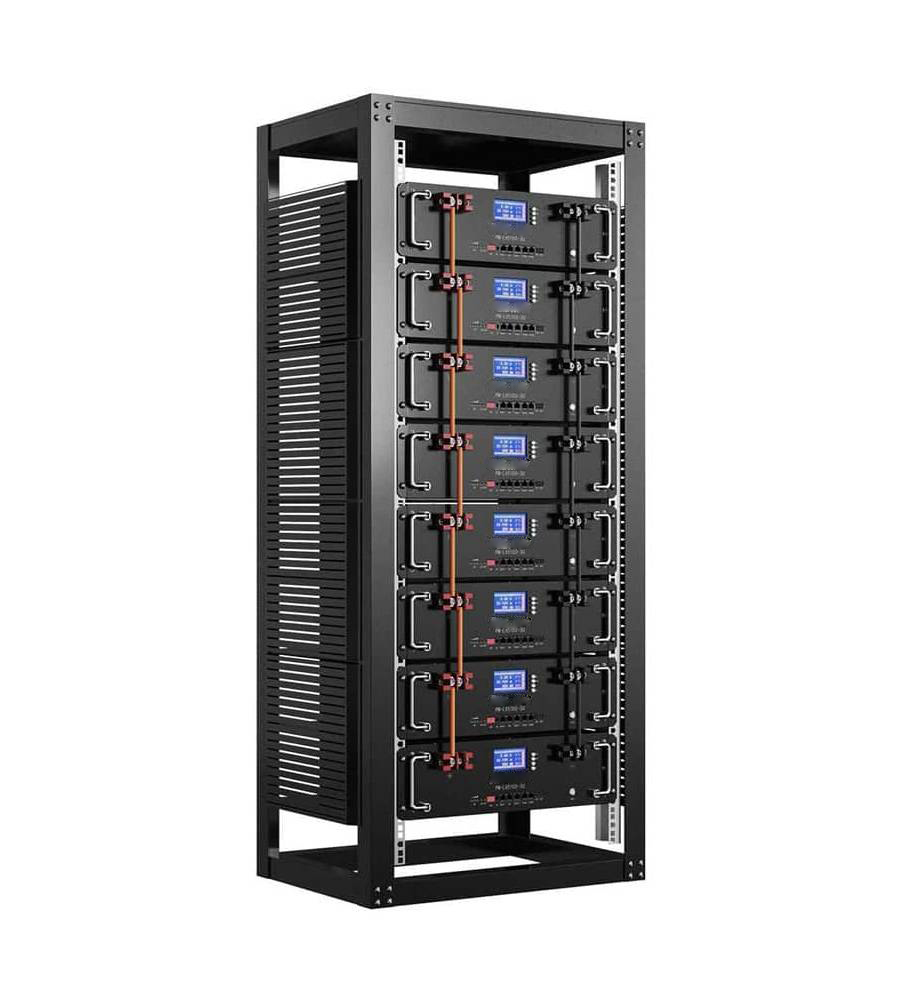

The PR-LV5150-3U Server Rack Battery is engineered for durability and efficiency in demanding environments. With a robust design featuring LiFePO4 cells, it supports a wide operating temperature range and boasts an impressive cycle life of over 8000 cycles. The integrated smart BMS ensures safety and reliability by monitoring performance and providing protection against common electrical issues. This battery is perfect for data centers, telecom stations, and off-grid applications, offering flexibility with customizable features to meet specific client needs. Its compact 3U design allows for easy integration into standard server racks, making it an ideal choice for businesses looking to enhance their energy storage capabilities.

For wholesale inquiries or to discuss customization options, please contact us today!

Download Icon

Note: Our products are customizable, allowing customers to modify the main data according to their requirements.

PM-LV5150-3U Specifications (Single Battery Module)

Specification Details
Model PM-LV5150-3U (Single Battery Module)
Battery Cell Type Lithium iron Phosphate Battery (LiFePO4 / LFP)
Nominal Voltage 51.2V
Battery Capacity 50Ah
Nominal Energy 2.56kWh
Dimensions [L x W x H] 440 x 440 x 136 mm (17.32 x 17.32 x 5.35 inches) / 3U
Weight 24kg (53 lb)
Working Voltage 40V~58.4V
Charge Voltage 58.4V
Discharge Cut-off Voltage 40V
Max Continuous Charge Current 50A
Max Continuous Discharge Current 50A
Standard Charging / Discharging Current 25A
Max Charging / Discharging Current 50A
Fast Charging Supports Fast Charging
Charging Temperature 0~55°C (32℉~131℉)
Discharging Temperature -20~60°C (-4℉~140℉)
Operating Humidity Range <30%
Series / Parallel Number 16S1P
Max Parallel Connection 16P to 40.96kWh
Cycle Life (25°C / 77℉ @ 60% DOD) >8000 Cycles
Cycle Life (25°C / 77℉ @ 80% DOD) >6000 Cycles
Self-Discharge Rate <1% per month
IP Grade IP21 (Upgrade upon request)
Battery Case Metal (Surface: black waterproof baking paint)
Monitoring & Protection Smart BMS: Overcharge / OverDischarge / Overcurrent / OverTemperature / ShortCircuit
Communication RS485 / CAN
LCD Screen Yes
Optional Functions Bluetooth / WiFi / Circuit Breaker / Heating / Active Balance / LED Touch Screen / APP
Accessories Inverter Power Cable, Parallel Cable, Communication Cable, Grounding Wire
Pros Support Off-Grid and Hybrid working mode, compact design, wall and floor type
Compatible Inverters Victron / GOODWE / Solis / Growatt / SMA / SAJ / Luxpower / SRNE / Deye / Voltronic, etc.
Connector M8 Thread Terminals
Design Life 20 Years
Warranty 7 Years
User Manual With the Battery Packaging
Certifications CE / IEC / UN38.3 / MSDS / (More upon request)

What is the PR-LV5150-3U Server Rack Battery?

The PR-LV5150-3U is a lithium iron phosphate (LiFePO4) battery designed for server racks, offering a nominal voltage of 51.2V and a capacity of 50Ah. It provides reliable energy storage for industrial applications, making it ideal for OEMODM, and wholesale buyers.

How long does the PR-LV5150-3U battery last?

This battery boasts an impressive cycle life of over 8000 cycles at 60% depth of discharge (DOD), ensuring long-lasting performance and reliability for your energy storage needs.

What safety features does the battery include?

The PR-LV5150-3U is equipped with a Smart Battery Management System (BMS) that protects against overcharge, over-discharge, and short circuits. This advanced monitoring ensures safe operation in various conditions.

Is the PR-LV5150-3U compatible with different inverters?

Yes, this battery is compatible with a wide range of inverters, including brands like VictronGOODWE, and SMA, making it a versatile choice for diverse energy systems.

Can I customize the PR-LV5150-3U battery?

Absolutely! The PR-LV5150-3U is available for OEM/ODM requests, allowing you to customize specifications to meet specific application requirements.

What are the shipping options for this battery?

The PR-LV5150-3U offers flexible shipping options, including FOBEXW, and CIF, with delivery available via sea, air, or land shipment in various container sizes.
