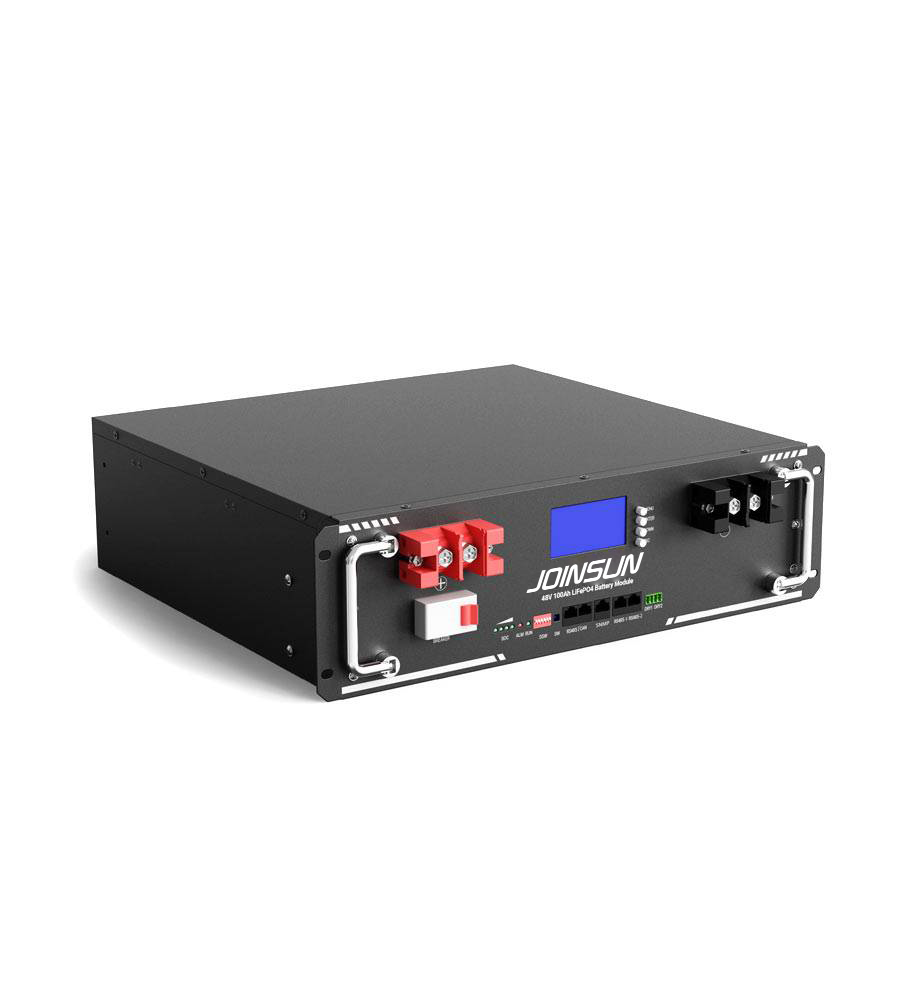

48V 100Ah PM-LV48100-3U-Telecom Lithium Rack Mounted Battery Module

• Cell: LiFePO4
• MOQ: 5
• Delivery: 25 Days
• Customizable / OEM / ODM: Yes
• Factory: JOINSUN, Guangdong, China
• Delivery Terms: FOB, EXW, CIF
• Payment: T/T, L/C, PayPal
• Sea / Air / Land Shipment: 10FT, 20FT, 40FT, 60FT

Efficient Power Solutions to Meet Your Needs

JOINSUN offers reliable power equipment to help optimize energy usage and reduce costs. Whether for industrial or commercial projects, we provide customized solutions based on your specific requirements. Contact us today to learn more and get a quote.

Quickly get a quote!

Description

The PM-LV48100-3U-Telecom Lithium Rack Mounted Battery Module is a robust energy storage solution designed for high-demand applications. With a nominal voltage of 48V and a capacity of 100Ah, it delivers 4.8kWh of reliable power, making it ideal for OEMODM, and wholesale buyers in the telecommunications sector.

Key Features

  • High Energy Output: Provides 4.8kWh of energy, suitable for critical power needs in telecom base stations and data centers.
  • Long Cycle Life: Exceeds 7000 cycles at 80% depth of discharge (DOD), ensuring durability and reduced replacement costs.
  • Advanced BMS Protection: Equipped with a sophisticated Battery Management System (BMS) that safeguards against overcurrent, overcharge, and other potential risks.
  • Versatile Compatibility: Works seamlessly with various inverters, including brands like GROWATTVictron, and more.
  • Customizable Options: Available for OEM/ODM requests, allowing tailored specifications to meet specific application requirements.

Product Description

The PM-LV48100-3U-Telecom Lithium Rack Mounted Battery Module is engineered for exceptional performance and reliability in energy storage applications. Utilizing advanced LiFePO4 technology, this battery operates efficiently across a wide temperature range, from -20°C to 60°C, and boasts an impressive cycle life of over 7000 cycles. Its integrated BMS ensures safety by continuously monitoring performance and providing essential protection features. Ideal for use in telecommunications, data centers, and renewable energy systems, the compact 3U design allows for easy installation in standard server racks.

For inquiries about bulk orders or customization options, please contact us today!

Download Icon

Note: Our products are customizable, allowing customers to modify the main data according to their requirements.
Attribute Specification
Model PM-LV48100-3U-Telecom
Battery Cell Type LiFePO4 (LFP)
Nominal Voltage 48V
Nominal Capacity 100Ah
Nominal Energy 4.8 KWh
Dimensions [L x W x H] 440 x 440 x 136 mm
17.32 x 17.32 x 5.35 inches
3U
Weight 39 kg
86 lb
Max Charge Voltage 54.75V
Discharge Cut-off Voltage 37.5V
Max Continuous Charge Current 100A
Max Continuous Discharge Current 100A
Max Peak Discharge Current 120A (3s)
Charge Temperature 0°C~60°C
Discharge Temperature -20°C~60°C
Max Parallel Connection 64 (307.2 KWh)
Cycle Life >7000 times deep discharge cycle (80% DOD, 0.5C)
Self-Discharge <2% per month
IP Rating IP21
Battery Shell Metal
Circuit Breaker Yes
BMS Protection JBD / DAREN / DALY / ESS BMS:
Overcurrent, Overcharge, Overdischarge, Overload, Overvoltage, Low-voltage, Overtemperature, Low Temperature, etc.
Communication SNMP, RS485 / CAN-bus
Optional Upgrades Bluetooth, APP, WiFi, 4G, GPS, RS232, TACP, Active Balance, Anti-Theft, LCD Screen, LED Indicator light, Solar panel, MPPT, Inverter, TACP, Fan, Heatsink, Thermal Aerosol Fire Suppression Device, Self-Heating, Circuit Breaker, etc.
Accessories Inverter Power Cable, Parallel Cable, Communication Cable, Grounding Wire
Compatible Inverters GROWATT / GOODWE / MUST / Victron / Sol-Ark / SRNE / Solis / SAJ / Luxpower / Voltronic / SMA / Deye / Simpliphi / Fox / HANCHU / MERITSUN / MEGAREVO / SAKO / SEL / LG / JNTECH / AIMS / SolaX / CHISAGE / INJET / Teze / EverExceed / Neovolt, etc.
Design Life 20 Years
Warranty 10 Years
User Manual Yes
Silkscreen / Label / Laser Logo Yes
OEM / ODM Yes
Certifications MSDS / UN38.3 / UN3480 / UL1642 (Cells) / IEC 62133 (Cells) / ISO 9001 (Factory)

What is the PM-LV48100-3U-Telecom Lithium Rack Mounted Battery Module?

The PM-LV48100-3U-Telecom is a 48V 100Ah lithium iron phosphate (LiFePO4) battery module designed for high-demand applications. It provides 4.8kWh of energy storage, making it ideal for telecommunications, data centers, and backup power solutions.

What are the key features of the PM-LV48100-3U-Telecom battery?

Key features include a cycle life of over 7000 cycles, an integrated Battery Management System (BMS) for enhanced safety, compatibility with various inverters, and a durable metal casing with an IP21 rating. It also offers customizable options for OEM and ODM projects.

How long does the PM-LV48100-3U-Telecom battery last?

The PM-LV48100-3U-Telecom has a design life of up to 20 years and includes a comprehensive 10-year warranty, ensuring reliable performance and longevity for your energy storage needs.

Can multiple PM-LV48100-3U-Telecom batteries be connected together?

Yes, you can connect up to 64 units in parallel, allowing you to significantly scale your energy storage capacity. This feature is especially beneficial for larger systems requiring extended backup power.

What safety features does the PM-LV48100-3U-Telecom battery include?

The battery features an advanced BMS that protects against overcurrent, overcharge, overdischarge, and temperature extremes. These safety measures ensure reliable operation and enhance the lifespan of the battery.

What payment and shipping options are available for the PM-LV48100-3U-Telecom?

Payment options include T/TL/C, and PayPal. Shipping can be arranged via sea, air, or land, with delivery terms such as FOBEXW, and CIF to accommodate wholesale buyers' needs.
