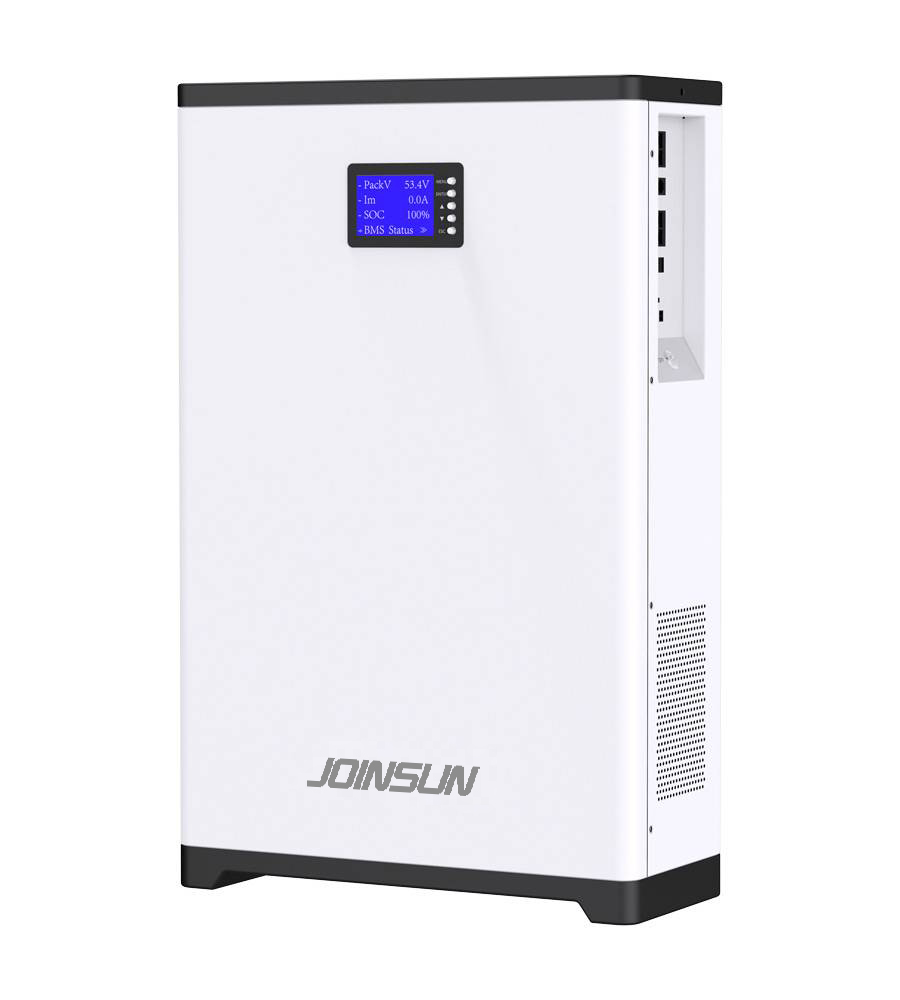

PW51100-H | Specifications |
---|---|
Cell Type | LiFePO4 |
Nominal Voltage | 51.2V |
Battery Capacity | 100Ah |
Nominal Energy | 5.12kWh |
Dimension [L x W x H] | 676 x 440 x 180 mm |
Weight | 56kg |
Working Voltage | 44.8V~57.6V |
Charge Voltage | 57.6V |
Discharge Cut-off Voltage | 44.8V |
Rated Charging/Discharge Current | 50A Continuous |
Maximum Charge Current | 100A Continuous |
Maximum Discharge Current | 100A Continuous |
Rated Charging/Discharge Power | 2560W |
Charging Temperature | 0~55°C |
Discharging Temperature | -20~60°C |
LCD Screen | Yes |
Cooling | Natural |
Max. Parallel Connection | 4p to 20.48kWh |
Cycle Life (25°C / 77℉@60% DOD) | >8000 Cycles |
Cycle Life (25°C / 77℉@80% DOD) | >6000 Cycles |
Self-Discharge Rate | <3% per month |
IP Grade | IP20 |
Battery Case | Metal |
Monitoring & Protection | Smart BMS: Overcharge / OverDischarge / Overcurrent / OverTemperature / ShortCircuit |
Communication | RS485 / RS232 / CAN-bus |
Optional Functions | Bluetooth / WiFi / 4G / 5G / Circuit Breaker / Heating / Active Balance / LED Touch Screen / APP |
Accessories | Inverter Power Cable, Parallel Cable, Communication Cable, Grounding Wire |
Compatible Inverters | Victron / GOODWE / Solis / Growatt / SMA / SAJ / Luxpower / SRNE / Deye / Voltronic, etc. |
Color | White |
Design Life | 20 Years |
Warranty | 10 Years |
User Manual | With the Battery Packaging |
Certification & Safety Standard | UN38.3 / IEC62619 / RoHS / EMC / MSDS |
