PR-LV5150-2U-PRO Server Rack Battery 48V 51.2V 50Ah 2.5kWh

• Cell: LiFePO4
• MOQ: 50
• Delivery: 20 Days
• Customizable / OEM / ODM: Yes
• Factory: JOINSUN, Guangdong, China
• Delivery Terms: FOB, EXW, CIF
• Payment: T/T, L/C, PayPal
• Sea / Air / Land Shipment: 10FT, 20FT, 40FT, 60FT

Efficient Power Solutions to Meet Your Needs

JOINSUN offers reliable power equipment to help optimize energy usage and reduce costs. Whether for industrial or commercial projects, we provide customized solutions based on your specific requirements. Contact us today to learn more and get a quote.

Quickly get a quote!

Description

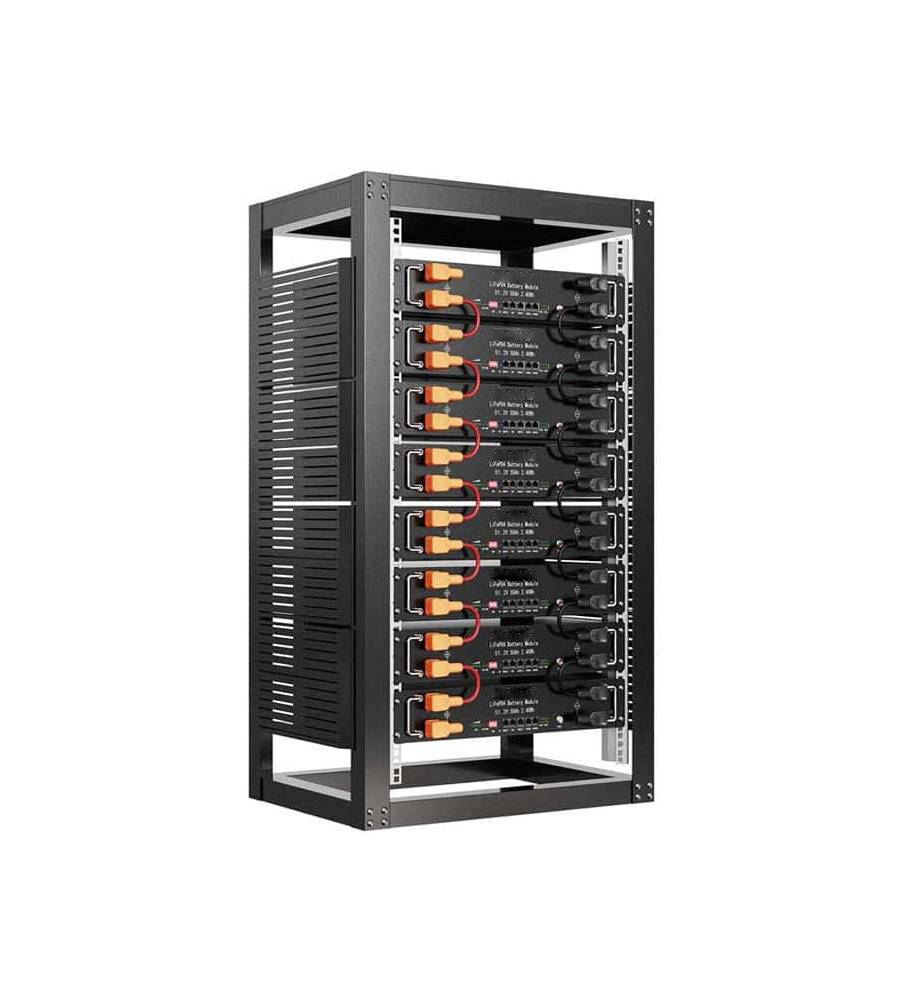

The PR-LV5150-2U-PRO Server Rack Battery from JOINSUN is a high-performance 48V lithium iron phosphate (LiFePO4) battery designed for OEM, ODM, and wholesale buyers. With a capacity of 50Ah and a nominal energy output of 2.56kWh, this battery is engineered for reliability and efficiency in demanding applications such as data centers and telecom systems.

Key Features

  • High Energy Density: Delivers 51.2V and 50Ah, providing a robust energy capacity of 2.56kWh for extended usage.
  • Exceptional Cycle Life: Designed to last over 8000 cycles at 60% depth of discharge (DOD), ensuring long-term performance and reduced replacement costs.
  • Advanced Safety Management: Equipped with a smart Battery Management System (BMS) that protects against overcharging, overheating, and short circuits.
  • Flexible Temperature Range: Operates efficiently in temperatures from -20°C to 60°C, making it suitable for various environments.
  • Customizable Options: Available for OEM/ODM projects with features like Bluetooth, WiFi connectivity, and various protective upgrades.

Product Description

The PR-LV5150-2U-PRO Server Rack Battery is meticulously crafted to meet the needs of modern energy storage solutions. This lithium iron phosphate battery boasts a nominal voltage of 51.2V and a capacity of 50Ah, translating to a powerful energy output of 2.56kWh. Its compact dimensions (410 x 440 x 88.5 mm) and lightweight design (23 kg) make it ideal for server racks and tight spaces.

This battery is built to last, featuring over 8000 cycles at a depth of discharge of 60%, which significantly lowers operational costs over time. The advanced BMS ensures safety by continuously monitoring critical parameters like voltage and temperature, providing comprehensive protection against potential hazards.

Additionally, the PR-LV5150-2U-PRO supports fast charging and is compatible with various inverters, making it a versatile choice for off-grid and hybrid systems. Its IP21 rating ensures it is suitable for indoor use, while customizable options allow businesses to tailor the battery to their specific requirements.

For OEM/ODM inquiries or bulk purchases, contact us today to discover how the PR-LV5150-2U-PRO can enhance your energy storage capabilities with reliability and efficiency.

Download Icon

Note: Our products are customizable, allowing customers to modify the main data according to their requirements.

PM-LV5150-2U-PRO Specifications (Single Battery Module)

Specification Details
Model PM-LV5150-2U-PRO (Single Battery Module)
Battery Cell Type Lithium iron Phosphate Battery (LiFePO4 / LFP)
Nominal Voltage 51.2V
Battery Capacity 50Ah
Nominal Energy 2.56kWh
Dimensions [L x W x H] 410 x 440 x 88.5 mm (16.14 x 17.32 x 3.48 in) / 2U / 19 inch
Weight 23kg (50.7 lb)
Working Voltage 40V~58.4V
Charge Voltage 58.4V
Discharge Cut-off Voltage 40V
Max Continuous Charge Current 50A
Max Continuous Discharge Current 50A
Standard Charging / Discharging Current 25A
Max Charging / Discharging Current 50A
Fast Charging Supports Fast Charging
Charging Temperature 0~55°C (32℉~131℉)
Discharging Temperature -20~60°C (-4℉~140℉)
Operating Humidity Range <30%
Series / Parallel Number 16S1P
Max Parallel Connection 15P to 38.4kWh
Cycle Life (25°C / 77℉ @ 60% DOD) >8000 Cycles
Cycle Life (25°C / 77℉ @ 80% DOD) >6000 Cycles
Self-Discharge Rate <1% per month
IP Grade IP21 (Upgrade upon request)
Battery Case Metal (Surface: black waterproof baking paint)
Monitoring & Protection Smart BMS: Overcharge / OverDischarge / Overcurrent / OverTemperature / ShortCircuit
Communication RS485 / CAN
Optional Functions Bluetooth / WiFi / Circuit Breaker / Heating / Active Balance / LCD Screen / LED Touch Screen / APP
Accessories Inverter Power Cable, Parallel Cable, Communication Cable, Grounding Wire
Pros Support Off-Grid and Hybrid working mode, compact design, wall and floor type
Compatible Inverters Victron / GOODWE / Solis / Growatt / SMA / SAJ / Luxpower / SRNE / Deye / Voltronic, etc.
Connector Quick Plug Connector
Design Life 20 Years
Warranty 10 Years
User Manual With the Battery Packaging
Certifications CE / IEC / UN38.3 / MSDS / (More upon request)

What is the capacity and voltage of the PR-LV5150-2U-PRO battery?

The PR-LV5150-2U-PRO battery has a nominal voltage of 51.2V and a capacity of 50Ah, providing a total energy output of 2.56kWh, making it suitable for high-demand applications.

How long does the battery last in terms of cycles?

This lithium iron phosphate (LiFePO4) battery is designed for longevity, offering over 8000 cycles at 60% depth of discharge (DOD) and over 6000 cycles at 80% DOD, ensuring reduced maintenance costs.

What safety features does this battery include?

The PR-LV5150-2U-PRO is equipped with a smart Battery Management System (BMS) that protects against overcharging, overheating, and short circuits, ensuring safe operation in various environments.

What temperature range can the battery operate in?

This battery operates efficiently in a wide temperature range from -20°C to 60°C (-4°F to 140°F), making it versatile for different climates and conditions.

Can the PR-LV5150-2U-PRO be customized for specific needs?

Yes, JOINSUN offers OEM and ODM customization options for the PR-LV5150-2U-PRO, allowing clients to tailor features such as Bluetooth connectivity, heating functions, and more.

What is the warranty period for this battery?

The PR-LV5150-2U-PRO comes with a robust warranty of 10 years, reflecting its design life of 20 years and commitment to reliability in energy storage solutions.
