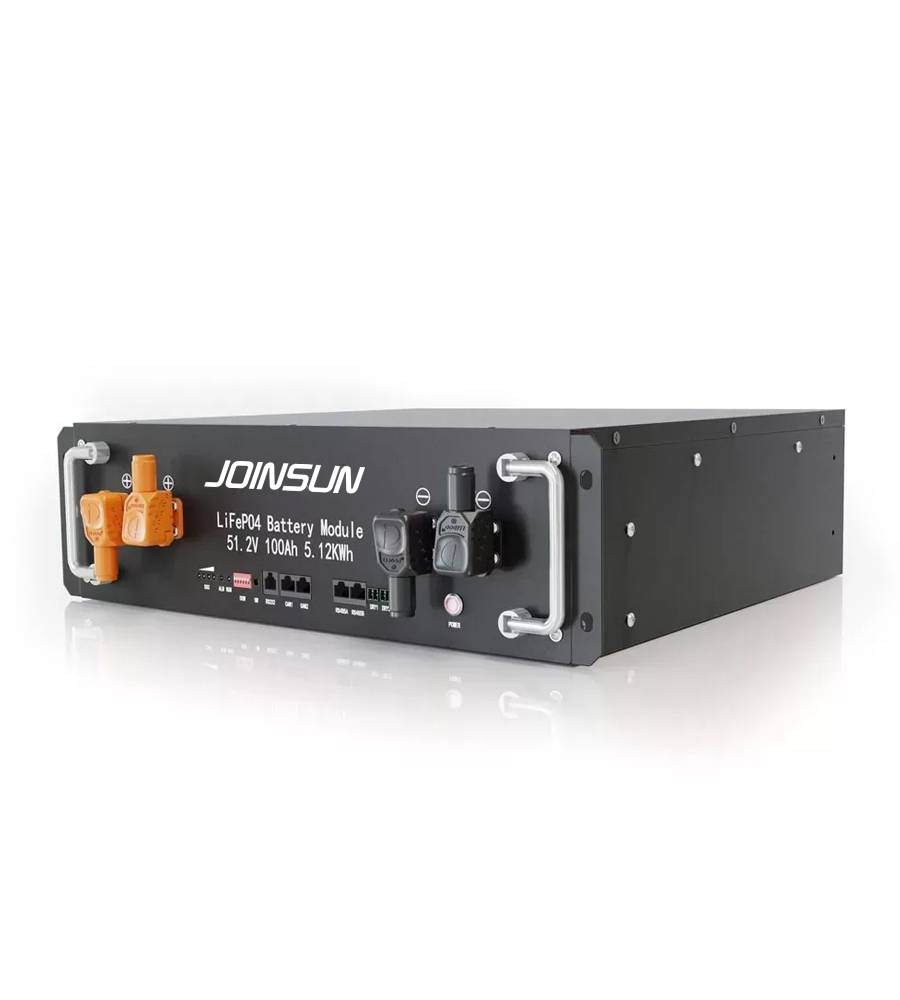

51.2V 100Ah Rack-mounted Lithium Battery PM-LV51100-3U-PRO

• Cell: LiFePO4
• MOQ: 50
• Delivery: 20 Days
• Customizable / OEM / ODM: Yes
• Factory: JOINSUN, Guangdong, China
• Delivery Terms: FOB, EXW, CIF
• Payment: T/T, L/C, PayPal
• Sea / Air / Land Shipment: 10FT, 20FT, 40FT, 60FT

Efficient Power Solutions to Meet Your Needs

JOINSUN offers reliable power equipment to help optimize energy usage and reduce costs. Whether for industrial or commercial projects, we provide customized solutions based on your specific requirements. Contact us today to learn more and get a quote.

Quickly get a quote!

Description

The PM-LV51100-3U-PRO Rack-mounted Lithium Battery is an advanced lithium iron phosphate (LiFePO4) energy storage solution, designed to deliver exceptional performance for demanding applications. With a nominal voltage of 51.2V and a capacity of 100Ah, it provides 5.12kWh of reliable energy, making it perfect for OEMODM, and wholesale buyers in various sectors.

Key Features

  • High Energy Capacity: Delivers 5.12kWh of energy, ideal for critical power backup in data centers and telecom systems.
  • Long Cycle Life: Exceeds 8000 cycles at 80% depth of discharge (DOD), ensuring durability and reduced replacement costs.
  • Smart BMS Protection: Equipped with an advanced Battery Management System (BMS) that safeguards against overcharge, over-discharge, and short circuits.
  • Versatile Compatibility: Compatible with a range of inverters, including brands like VictronGOODWE, and more.
  • Customizable Options: Available for OEM/ODM requests, allowing tailored specifications to meet specific application needs.

Product Description

The PM-LV51100-3U-PRO Rack-mounted Lithium Battery is meticulously engineered for high-performance energy storage in various applications. Utilizing cutting-edge LiFePO4 technology, this battery operates efficiently across a wide temperature range and boasts an impressive cycle life, making it a sustainable choice for long-term use. Its integrated Smart BMS ensures safety by continuously monitoring performance and providing essential protection features. Ideal for use in data centers, telecom stations, and renewable energy systems, the compact 3U design allows for easy installation in standard server racks.

For inquiries about bulk orders or customization options, please contact us today!

Download Icon

Note: Our products are customizable, allowing customers to modify the main data according to their requirements.

PM-LV51100-3U-PRO Battery Specifications

Specification Details
Cell Type Lithium iron Phosphate Battery (LiFePO4 / LFP)
Nominal Voltage 51.2V
Battery Capacity 100Ah
Nominal Energy 5.12kWh
Dimension [L x W x H] 440 x 440 x 136 mm (17.32 x 17.32 x 5.35 inches) 3U
Weight 42kg (92.6 lb)
Working Voltage 40V~58.4V
Charge Voltage 58.4V
Discharge Cut-off Voltage 40V
Maximum Charge Current 100A Continuous
Maximum Discharge Current 100A Continuous
Standard Charging / Discharging Current 50A
Maximum Charging / Discharging Current 100A
Fast Charging Supports Fast Charging
Charging Temperature 0~55°C (32℉~131℉)
Discharging Temperature -20~60°C (-4℉~140℉)
Operating Humidity Range <30%
Series / Parallel Number 16S1P
Max. Parallel Connection 16P to 81.92kWh
Cycle Life (25°C / 77℉@60% DOD) >8000 Cycles
Cycle Life (25°C / 77℉@80% DOD) >6000 Cycles
Self-Discharge Rate <1% per month
IP Grade IP21 (Upgrade upon request)
Battery Case Metal (Surface: black waterproof baking paint)
Monitoring & Protection Smart BMS: Overcharge / OverDischarge / Overcurrent / OverTemperature / ShortCircuit
Communication RS485 / CAN
Optional Functions Bluetooth / WiFi / Circuit Breaker / Heating / Active Balance / LCD Screen / LED Touch Screen / APP
Accessories Inverter Power Cable, Parallel Cable, Communication Cable, Grounding Wire
Pros Support Off-Grid and Hybrid working mode, compact design, wall and floor type
Compatible Inverters Victron / GOODWE / Solis / Growatt / SMA / SAJ / Luxpower / SRNE / Deye / Voltronic, etc.
Connector Quick Plug Connector
Design Life 20 Years
Warranty 10 Years
User Manual With the Battery Packaging
Certification & Safety Standard CE / IEC / UN38.3 / MSDS / (More upon request)

What is the PM-LV51100-3U-PRO Rack-mounted Lithium Battery?

The PM-LV51100-3U-PRO is a 51.2V 100Ah lithium iron phosphate (LiFePO4) battery designed for rack-mounted applications. It provides 5.12kWh of energy storage, making it ideal for critical power backup in data centers and telecom systems.

What are the key features of the PM-LV51100-3U-PRO battery?

Key features include a cycle life exceeding 8000 cycles, an integrated Battery Management System (BMS) for enhanced safety, compatibility with various inverters, and a durable metal casing with an IP21 rating. It also offers customizable options for OEM and ODM projects.

How long does the PM-LV51100-3U-PRO battery last?

The PM-LV51100-3U-PRO has a design life of up to 20 years and includes a comprehensive 10-year warranty, ensuring long-term reliability and performance for your energy storage needs.

Can multiple PM-LV51100-3U-PRO batteries be connected together?

Yes, you can connect up to 16 units in parallel, allowing you to significantly scale your energy storage capacity. This feature is especially beneficial for larger systems requiring extended backup power.

What safety features does the PM-LV51100-3U-PRO battery include?

The battery features an advanced Smart BMS that protects against overcurrent, overcharge, overdischarge, and temperature extremes. These safety measures ensure reliable operation and enhance the lifespan of the battery.

What payment and shipping options are available for the PM-LV51100-3U-PRO?

Payment options include T/TL/C, and PayPal. Shipping can be arranged via sea, air, or land, with delivery terms such as FOBEXW, and CIF to accommodate the needs of wholesale buyers.
