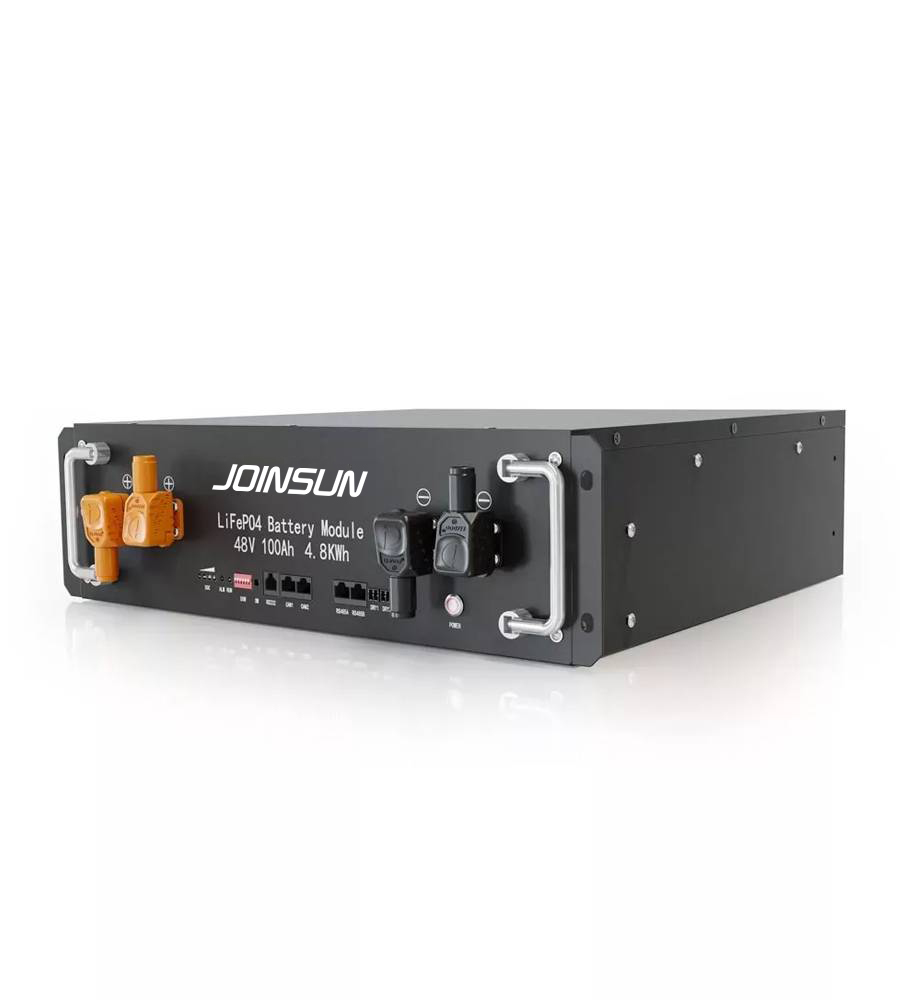

48V 100Ah PM-LV48100-3U-PRO Lithium Battery Module

• Cell: LiFePO4
• MOQ: 50
• Delivery: 20 Days
• Customizable / OEM / ODM: Yes
• Factory: JOINSUN, Guangdong, China
• Delivery Terms: FOB, EXW, CIF
• Payment: T/T, L/C, PayPal
• Sea / Air / Land Shipment: 10FT, 20FT, 40FT, 60FT

Efficient Power Solutions to Meet Your Needs

JOINSUN offers reliable power equipment to help optimize energy usage and reduce costs. Whether for industrial or commercial projects, we provide customized solutions based on your specific requirements. Contact us today to learn more and get a quote.

Quickly get a quote!

Description

The PM-LV48100-3U-PRO is a high-capacity 48V lithium iron phosphate (LiFePO4) battery module designed for demanding applications, offering a capacity of 100Ah and 4.8kWh of energy. Tailored for OEMODM, and wholesale buyers, this battery delivers exceptional performance and reliability for various energy storage needs.

Key Features:

  • High Energy Capacity: Delivers 4.8kWh of energy with a 100Ah capacity, ideal for powering server rooms, data centers, and backup systems.
  • Extended Cycle Life: Capable of over 8000 cycles at 60% depth of discharge, ensuring long-lasting performance and reduced operational costs.
  • Smart BMS Protection: Equipped with a comprehensive Battery Management System that safeguards against overcharging, discharging, and short circuits.
  • Versatile Compatibility: Supports multiple communication protocols like RS485 and CAN, allowing seamless integration with various inverter systems.
  • Customizable Solutions: Available for OEM/ODM projects, enabling tailored specifications to meet specific client requirements.

Product Description:

The PM-LV48100-3U-PRO Lithium Battery Module is engineered to provide reliable energy storage solutions for critical applications. With a nominal voltage of 48V and a robust capacity of 100Ah, this battery module is designed to fit standard 19-inch racks, facilitating easy installation and efficient use of space.

Constructed with advanced LiFePO4 technology, the PM-LV48100-3U-PRO ensures safe operation through its intelligent Battery Management System (BMS), which continuously monitors performance and provides real-time data on battery health. This model operates effectively across a wide temperature range from -20°C to 60°C, making it suitable for diverse environmental conditions.

The modular design allows for up to 16 parallel connections, enabling scalable solutions tailored to your specific energy needs. With certifications such as CEIEC, and UN38.3, you can trust the quality and safety of this product. For inquiries regarding bulk orders or customized solutions, contact us today to explore how the PM-LV48100-3U-PRO can enhance your energy storage capabilities.

Download Icon

Note: Our products are customizable, allowing customers to modify the main data according to their requirements.
Attribute Specification
Cell Type Lithium iron Phosphate Battery (LiFePO4 / LFP)
Nominal Voltage 48V
Battery Capacity 100Ah
Nominal Energy 4.8kWh
Dimension [L x W x H] 440 x 440 x 136 mm
17.32 x 17.32 x 5.35 inches
3U
Weight 39kg
87 lb
Working Voltage 37.5V~54.75V
Charge Voltage 54.75V
Discharge Cut-off Voltage 37.5V
Maximum Charge Current 100A Continuous
Maximum Discharge Current 100A Continuous
Standard Charging / Discharging Current 50A
Maximum Charging / Discharging Current 100A
Fast Charging Supports Fast Charging
Charging Temperature 0~55°C
32℉~131℉
Discharging Temperature -20~60°C
-4℉~140℉
Operating Humidity Range <30%
Series / Parallel Number 15S1P
Max. Parallel Connection 16P to 76.8kWh
Cycle Life (25°C / 77℉ @ 60% DOD) >8000 Cycles
Cycle Life (25°C / 77℉ @ 80% DOD) >6000 Cycles
Self-Discharge Rate <1% per month
IP Grade IP21 (Upgrade upon request)
Battery Case Metal (Surface: black waterproof baking paint)
Monitoring & Protection Smart BMS: Overcharge / OverDischarge / Overcurrent / OverTemperature / ShortCircuit
Communication RS485 / CAN
Optional Functions Bluetooth / WiFi / Circuit Breaker / Heating / Active Balance / LCD Screen / LED Touch Screen / APP
Accessories Inverter Power Cable, Parallel Cable, Communication Cable, Grounding Wire
Pros Support Off-Grid and Hybrid working mode, compact design, wall and floor type
Compatible Inverters Victron / GOODWE / Solis / Growatt / SMA / SAJ / Luxpower / SRNE / Deye / Voltronic, etc.
Connector Quick Plug Connector
Design Life 20 Years
Warranty 10 Years
User Manual With the Battery Packaging
Certifications CE / IEC / UN38.3 / MSDS / (More upon request)

What is the capacity of the PM-LV48100-3U-PRO battery?

The PM-LV48100-3U-PRO battery has a nominal capacity of 100Ah and provides a total energy output of 4.8kWh. This makes it suitable for applications requiring reliable energy storage, such as server rooms, data centers, and backup systems.

How long does the PM-LV48100-3U-PRO battery last?

This battery features a cycle life of over 8000 cycles at 60% depth of discharge (DOD). With proper usage and maintenance, it can deliver dependable performance for many years, making it a cost-effective choice for energy storage.

What safety features does the PM-LV48100-3U-PRO include?

The PM-LV48100-3U-PRO is equipped with a smart Battery Management System (BMS) that protects against overcharging, discharging, overcurrent, and short circuits. These safety features ensure safe operation and enhance the battery's longevity.

Can the PM-LV48100-3U-PRO be used in extreme temperatures?

Yes, this battery operates efficiently within a temperature range of -20°C to 60°C (-4°F to 140°F) for discharging and 0°C to 55°C (32°F to 131°F) for charging, making it suitable for various environmental conditions.

Is the PM-LV48100-3U-PRO customizable for OEM/ODM projects?

Yes, the PM-LV48100-3U-PRO battery is available for OEM/ODM projects, allowing for customization in specifications and features to meet specific client needs. This flexibility makes it an ideal choice for wholesale buyers.

What types of communication does the PM-LV48100-3U-PRO support?

This battery supports communication protocols such as RS485 and CAN, enabling seamless integration with various inverter systems. This feature enhances its compatibility with different energy management solutions.
