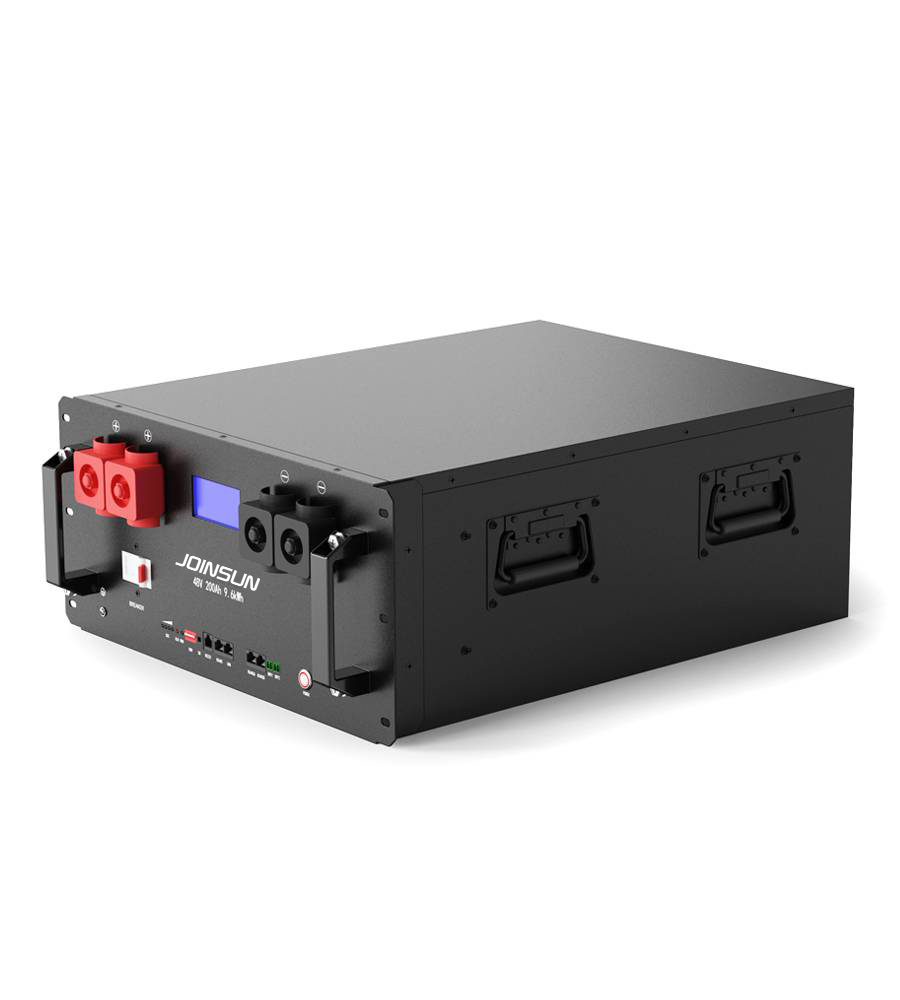

51.2V 48V 200Ah PM-LV51200-5U Lithium Battery Module

• Cell: LiFePO4
• MOQ: 5
• Delivery: 25 Days
• Customizable / OEM / ODM: Yes
• Factory: JOINSUN, Guangdong, China
• Delivery Terms: FOB, EXW, CIF
• Payment: T/T, L/C, PayPal
• Sea / Air / Land Shipment: 10FT, 20FT, 40FT, 60FT

Efficient Power Solutions to Meet Your Needs

JOINSUN offers reliable power equipment to help optimize energy usage and reduce costs. Whether for industrial or commercial projects, we provide customized solutions based on your specific requirements. Contact us today to learn more and get a quote.

Quickly get a quote!

Description

The PM-LV51200-5U is a robust 51.2V 200Ah lithium iron phosphate (LiFePO4) battery module, designed for commercial and industrial energy storage systems. This high-capacity battery delivers 10.24kWh of energy, making it ideal for applications ranging from telecom base stations to solar energy systems.

Key Features:

  • High Capacity: Provides 10.24kWh of energy with a rated capacity of 200Ah.
  • Long Cycle Life: Capable of over 8000 cycles at 80% depth of discharge (DOD) for extended durability.
  • Smart BMS Protection: Equipped with a JBD Smart Battery Management System for enhanced safety and performance.
  • Scalable Design: Supports parallel connections up to 32 units, allowing for flexible energy storage solutions.
  • Versatile Applications: Suitable for various environments, including data centers, hospitals, and off-grid systems.

Product Description

The PM-LV51200-5U Lithium Battery Module is engineered to meet the demanding energy storage needs of commercial and industrial applications. With a nominal voltage of 51.2V and a capacity of 200Ah, this battery module provides a reliable power source for critical operations such as telecom base stations, data centers, and home energy storage systems.

Constructed with high-quality LiFePO4 cells, the PM-LV51200-5U ensures safety and longevity, boasting a design life of 20 years and a warranty of 10 years. Its intelligent JBD Smart BMS protects against overcharging, overheating, and short circuits, ensuring optimal performance in various conditions.

With dimensions of 570 x 440 x 222 mm and a weight of 85kg, this battery module is designed for easy integration into existing systems. Its IP21 rating offers protection against dust and moisture, making it suitable for diverse environments. Whether you are looking to enhance your energy storage capabilities or develop new solutions, the PM-LV51200-5U is your trusted partner in power management.

Download Icon

Note: Our products are customizable, allowing customers to modify the main data according to their requirements.

General Specifications

Specification Details
Applications Commercial and Industrial ESS, Telecom Base Station, Data Center, Server Room, Internet Cafe, School, Hospital, Home-ESS, Solar / Off-Grid / On-Grid / Hybrid ESS System
Cell Type LiFePO4 (LFP)
Rated Voltage 51.2V
Rated Capacity 200Ah
Rated Energy 10.24kWh
Dimensions [L x W x H] 570 x 440 x 222 mm (22.4 x 17.3 x 8.7 in) 5U
Weight 85kg (187 lbs)
Working Voltage 40V~58.4V
Max Charge Voltage 58.4V
Discharge Cut-off Voltage 40V
Max Continuous Charge Current 100A
Max Continuous Discharge Current 100A
Max Parallel Connection 16
Customizable for Parallel Connection Expansion Up to 32
Cycle Life >8000 Cycles (80% DOD)
Self-Discharge <1.5% per month
IP Rating IP21
Battery Shell Metal
BMS JBD Smart BMS (Redway)
Compatible Inverters Deye, Victron, GOODWE, Sol-Ark, SRNE, Solis, SAJ, Growatt, Luxpower, Voltronic, SMA, FOX, etc.
Terminal M6
Optional Terminal Single Core Energy Storage Connector
Battery Cabinet Optional (8PCS / 600 x 600 x 1600 mm)
Design Life 20 Years
Warranty 10 Years
User Manual Yes
Silkscreen / Label / Laser Logo Yes
OEM / ODM Yes
Certification UL 1642, UL 9540A, UL 1973, IEC 62619, IEC 62133, CE, RoHS, UN38.3, MSDS

Functions

Function Details
Communication RS485
SNMP Optional
LCD Display Yes
Circuit Breaker Yes
Power Switch Yes
Optional Upgrades Bluetooth, App, SNMP, CAN-bus, Battery Monitoring Software (PC), WiFi, 4G, GPS, RS232, Self-heating, TACP, Thermal Aerosol Fire Suppression Device, Solar MPPT, Inverter, etc.

Temperature

Temperature Type Range
Charge Temperature 0°C ~ 60°C (32°F ~ 140°F)
Discharge Temperature -20°C ~ 60°C (-4°F ~ 140°F)
Storage Temperature 0°C ~ 45°C (32°F ~ 113°F)

What is the PM-LV51200-5U Lithium Battery Module?

The PM-LV51200-5U is a 51.2V 200Ah lithium iron phosphate (LiFePO4) battery module designed for commercial and industrial applications. It provides 10.24kWh of energy, making it ideal for telecom base stations, data centers, and solar energy systems.

What are the key features of this battery module?

Key features include a cycle life of over 8000 cycles, a rated capacity of 200Ah, and a robust JBD Smart Battery Management System for safety. It also supports parallel connections up to 32 units, allowing for scalable energy solutions.

How long does the PM-LV51200-5U battery last?

The PM-LV51200-5U has a design life of 20 years and comes with a 10-year warranty, ensuring reliable performance and durability for your energy storage needs in various applications.

Can I connect multiple PM-LV51200-5U batteries together?

Yes, you can connect up to 16 units in parallel, with the option to expand to 32 units. This scalability allows you to customize your energy storage capacity based on specific requirements.

What safety features does the PM-LV51200-5U include?

The battery module features a comprehensive JBD Smart BMS that protects against overcharging, overheating, and short circuits. These safety measures ensure reliable operation in critical applications and enhance the overall lifespan of the battery.

What payment and shipping options are available?

Payment options include T/TL/C, and PayPal. Shipping can be arranged via sea, air, or land, with delivery terms such as FOB, EXW, and CIF to accommodate the needs of wholesale buyers.
