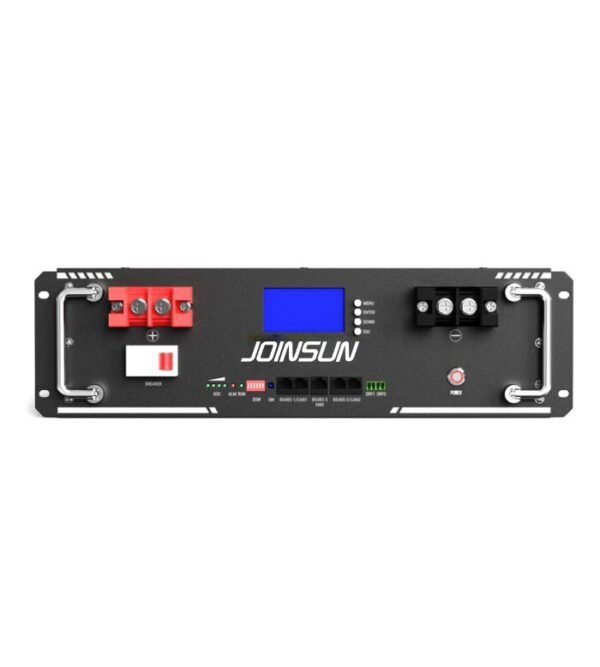

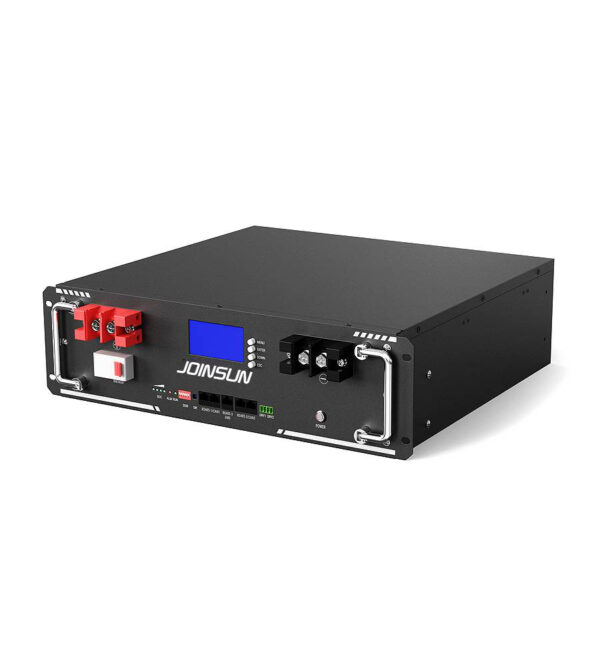

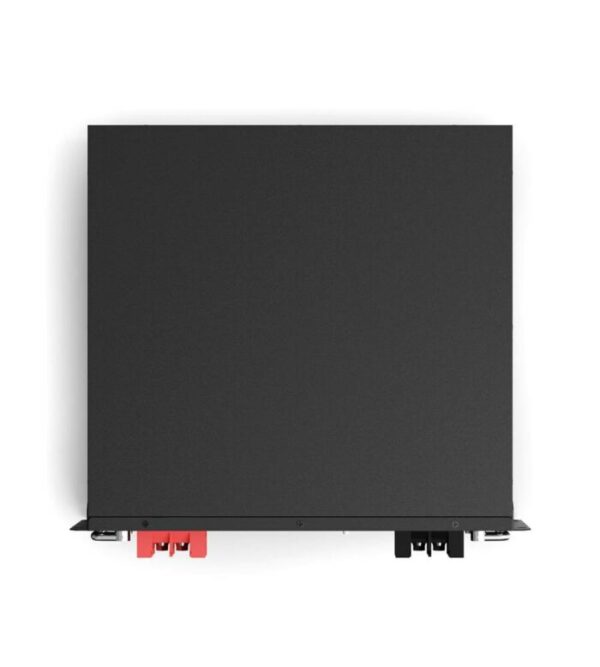

48V 100Ah Rack-mounted Lithium Battery PM-LV48100-3U

• Nominal Voltage: 48V
• Nominal Capacity: 100Ah
• Kilowatt-hour(s): 4.8kWh
• Dimensions: 440×440×136 mm
• Temperature Protection
• Cell & Module Voltage Protection
• APP / PC Monitoring Software Included
• Lifetime firmware updates

Category Tags , ,

Efficient Power Solutions to Meet Your Needs

JOINSUN offers reliable power equipment to help optimize energy usage and reduce costs. Whether for industrial or commercial projects, we provide customized solutions based on your specific requirements. Contact us today to learn more and get a quote.

Quickly get a quote！

Description

The PM-LV48100-3U is a high-performance 48V 100Ah lithium iron phosphate (LiFePO4) battery designed for reliable energy storage in various applications. With a nominal energy output of 4.8kWh, this battery is ideal for server rooms, data centers, and telecom systems.

Key Features:

  • High Energy Density: Provides 4.8kWh of energy with a compact design, fitting standard 3U rack systems.
  • Exceptional Longevity: Capable of over 8000 cycles at 80% depth of discharge (DOD), ensuring long-lasting performance.
  • Advanced Safety Features: Equipped with a comprehensive Battery Management System (BMS) that protects against overcurrent, overcharge, and temperature extremes.
  • Flexible Connectivity: Supports parallel connections up to 64 units, allowing for scalable energy solutions.
  • Smart Monitoring: Includes an LCD screen and APP/PC monitoring software for real-time performance tracking.

Product Description

The PM-LV48100-3U Rack-Mounted Lithium Battery is engineered to meet the rigorous demands of modern energy storage applications. With a nominal voltage of 48V and a capacity of 100Ah, this battery delivers robust performance with a total output of 4.8kWh. It is particularly suitable for use in server rooms, data centers, and telecom base stations.

Constructed using high-quality LiFePO4 cells, the PM-LV48100-3U ensures safety and reliability. Its advanced BMS monitors the battery’s health, providing protection against overcharging, overheating, and short circuits. Designed for easy integration into existing systems, this battery module fits standard rack cabinets and is built to withstand demanding environments with an IP21 rating.

With a design life of 20 years and a warranty of 10 years, the PM-LV48100-3U offers peace of mind for businesses looking to invest in sustainable energy solutions. Whether you need backup power or a primary energy source for your operations, this battery module provides the performance and scalability you require. Contact us today to learn how the PM-LV48100-3U can meet your specific energy storage needs!

Download Icon

Note: Our products are customizable, allowing customers to modify the main data according to their requirements.
Attribute Specification
Cell Type LiFePO4 (LFP)
CATL / EVE / BYD / Samsung SDI / Gotion / SVOLT / LISHEN / REPT / ANC
Nominal Voltage 48V
Nominal Capacity 100Ah
Nominal Energy 4.8kWh
Dimensions [L x W x H] 440 x 440 x 136 mm
17.32 x 17.32 x 5.35 inches
3U
Weight 39 kg
86 lbs
Working Voltage 37.5V~54.75V
Max Charge Voltage 54.75V
Max Cut-off Discharge Voltage 37.5V
Standard Continuous Charge / Discharge Current 50A
Max Continuous Charge Current 100A
Max Continuous Discharge Current 100A
Charge Temperature 0°C~60°C
Discharge Temperature -20°C~60°C
Max Parallel Connection 64
Cycle Life >8000 Cycles (80% DOD Deep Cycle)
Self-Discharge <2% per month
IP Rating IP21
Battery Shell Metal
Circuit Breaker Yes
SOC Indicator Lights Yes
LCD Screen Yes
BMS Brands JBD / DALY / DAREN / Advanced ESS Smart BMS
BMS Protection Cell Automatic Balance / Over Current / Over Charge / Over Discharge / Overload / Over Voltage / Low Voltage / Short Circuit / Over Temperature / Low Temperature
Communication RS485 / RS232 / CAN-bus
DIP Manual DIP Switch
Automatic DIP (Optional)
Optional Upgrades SNMP / Self-Heating / Bluetooth / APP / WiFi / 4G / GPS / RS232 / Modbus / TCP/IP / Active Balance / Anti-Theft / LED Indicator Light / Solar Panel / Solar Controllers / MPPT / Inverters / TACP / Fan / Heatsink / Thermal Aerosol Fire Suppression Device / Circuit Breaker
Accessories Inverter Power Cable / Parallel Cable / Communication Cable / Grounding Wire
Compatible Inverters GROWATT / FOX / GOODWE / MUST / SRNE / Victron / Sol-Ark / Solis / SAJ / Luxpower / Voltronic / SMA / Deye / Simpliphi / HANCHU / MERITSUN / MEGAREVO / SAKO / SEL / LG / JNTECH / AIMS / SolaX / CHISAGE / INJET / Teze / EverExceed / Neovolt
Design Life 20 Years
Warranty 10 Years
User Manual Yes
Certifications UN38.3 / UN3480 / MSDS / UL 1642 (Cells) / IEC 62133 (Cells) / ISO 9001 (Factory)

What is the PM-LV48100-3U Rack-Mounted Lithium Battery?

The PM-LV48100-3U is a 48V 100Ah lithium iron phosphate (LiFePO4) battery designed for efficient energy storage. With a nominal energy output of 4.8kWh, it is ideal for applications such as server rooms, data centers, and telecom systems.

What are the key features of the PM-LV48100-3U battery?

Key features include a cycle life of over 8000 cycles, an advanced Battery Management System (BMS) for safety, and a compact design that fits standard 3U rack systems. It also supports parallel connections up to 64 units for scalable energy solutions.

How long does the PM-LV48100-3U battery last?

The PM-LV48100-3U has a design life of 20 years and can provide over 8000 cycles at 80% depth of discharge (DOD). This longevity makes it a reliable choice for long-term energy storage needs.

Can I connect multiple PM-LV48100-3U batteries together?

Yes, the PM-LV48100-3U supports parallel connections up to 64 units, allowing you to customize your energy storage capacity based on specific requirements. This scalability is ideal for larger systems needing increased power.

What safety features does the PM-LV48100-3U include?

The battery features an advanced BMS that protects against overcharging, over-discharging, and short circuits. These built-in safety measures ensure reliable operation and enhance the overall lifespan of the battery module.

What payment and shipping options are available for the PM-LV48100-3U?

Payment options include T/T, L/C, and PayPal. Shipping can be arranged via sea, air, or land, with delivery terms such as FOB, EXW, and CIF to accommodate the needs of wholesale buyers.
